Product Details:
|
| Product Name: | Continuous Production Line | Panel Size: | 1220*2440mm |
|---|---|---|---|
| Panel Thickness: | 10~150mm | Plate Size: | 2600*1300*40mm |
| Air Pressure: | 5~6KGF/CM2 | Dimensions: | 60M×2.4M×4.8M (L×W×H) |
| Voltage: | 380/50HZ | Weight: | 60T |
| Color: | Customized | Application: | Aluminum Honeycomb Panel |
| Highlight: | Aluminum Honeycomb Panel Production Line,Continuous Honeycomb Panel Production Line,Continuous Aluminum Honeycomb Panel Production Line |
||
Continuous Aluminum Honeycomb Panel Production Line With A Capacity Of 1000 Pcs Per Day
1. Descriptions:
This equipment is designed for direct production of continuous honeycomb panels, three-layer composite, and specialized production line equipment for flat aluminum-plastic composite panels after being laminated with aluminum coils on both sides, hot rolled and cut.
After the aluminum composite plate is pressed along the core plate thickness by the front pressure rolling mill, it enters the pre composite state; Then, the polymer adhesive film and the heated upper and lower aluminum coils are pre bonded and transferred to the mirror wheel group. The five layers enter the rolling wheel of the forming and leveling composite machine at the same time, and undergo pre compounding, hot rolling, cold rolling, cooling and shaping, and cutting to length to form a sandwich type composite board.
Composite into sandwich shaped boards, the feedback signal from the fixed length sensor can cause the cutting machine to automatically clamp the boards and move them synchronously in the direction of transportation, and then automatically return to their original position after cutting.
Continuous Aluminum Honeycomb Panel Production Line Equipment Components:
| Item | Name | QTY |
| 1 | Core Connection Platform | 1Set |
| 2 | Honeycomb core stretching platform | 1Set |
| 3 | Platform | 1Set |
| 4 | Pre compounding machine | 1Set |
| 5 | Oven | 2Set |
| 6 | Composite machine 1 & 2 | 2 sets, 2groups |
| 7 | Composite machine 3 | 2 sets, 4 groups |
| 8 | Aluminum coil unwinding machine (2 units each) | 4Set |
| 9 | Cooling machine | 1Set |
| 10 | Protective film laminating machine | 1Set |
| 11 | Vertical sawing machine | 1Set |
| 12 | 3 sets of synchronous drive machines | 1Set |
| 13 | Horizontal sawing machine | 1Set |
| 14 | Rear platform | 1Set |
| 15 | manipulator | 1Set |
| 16 | Mobile car | 2Set |
| 17 | Production line electrical cabinet | 1Set |
| 18 | Main console | 1Set |
| 19 | Sawing operation table | 1Set |
2. Specifications of Continuous Aluminum Honeycomb Panel Production Line:
| Color | Orange (color can be customized according to customer requirements) | |
| Power supply | 380V, III, 50HZ | |
| Air pressure | pressure | 5~6KGF/CM2 |
| Gas consumption | 1.0~1.2M3/MIN | |
| Industrial Water | pressure | 1-4KG/CM2 |
| Water volume | 0.5-1.5M3/H | |
| Size | 60M×2.4M×4.8M (L×W×H) | |
| Factory requirements | 80M×20M×10M (L×W×H) (Min.) | |
| Total weight | 60T | |
| Production line operation direction | From left to right, from right to left (according to the actual needs of the customer), need to 4~6workers | |
3. Continuous Aluminum Honeycomb Panel Production Line has several advantages:
Low running resistance
No deformation
Uniform temperature
High production efficiency
Saves labor
Reduces material waste.
4. Applications Of Continuous Aluminum Honeycomb Panel Production Line:
It is suitable for aluminum honeycomb panel, Honeycomb board continuous production line.
5. Quality control:
A very technical engineering team. The general manager has worked in the Netherlands. The core technologies are introduced from the Netherlands. Others are very young and have more than 5 years of practical experience.
Strict QC team: 8 people are responsible for honeycomb panel equipment of quality control of parts, processing, testing, packaging, etc.
6. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.

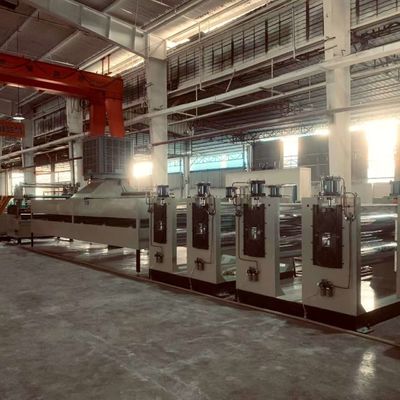

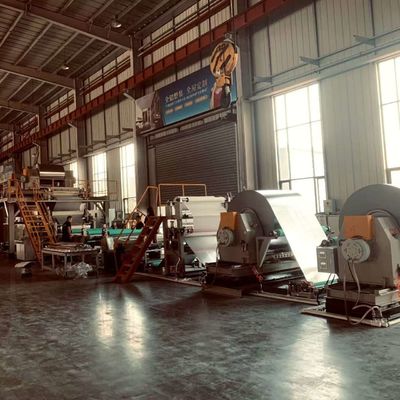

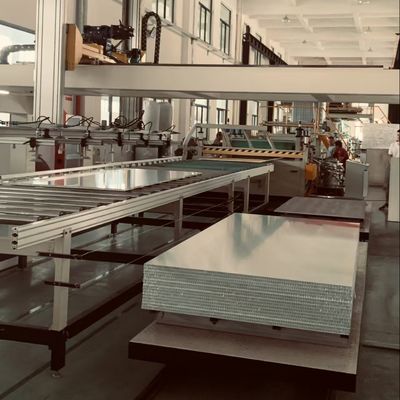

7. Production picture
8. FAQ
Q1. What is aluminum honeycomb panel continuous production line honeycomb panel equipment usd for?
A: The aluminum honeycomb panel continuous production line has been widely used in aluminum honeycomb panel.
Q2. What are the advantages of aluminum honeycomb panel continuous production line honeycomb panel equipment?
A:The aluminum honeycomb panel continuous production line honeycomb panel equipment is high efficiency and low cost.
Q3. What is the packaging method of aluminum honeycomb panel continuous production line?
A: Packed in plywood cases with wrapping film
